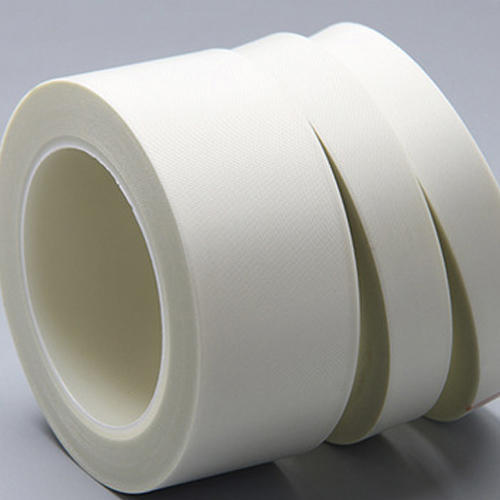

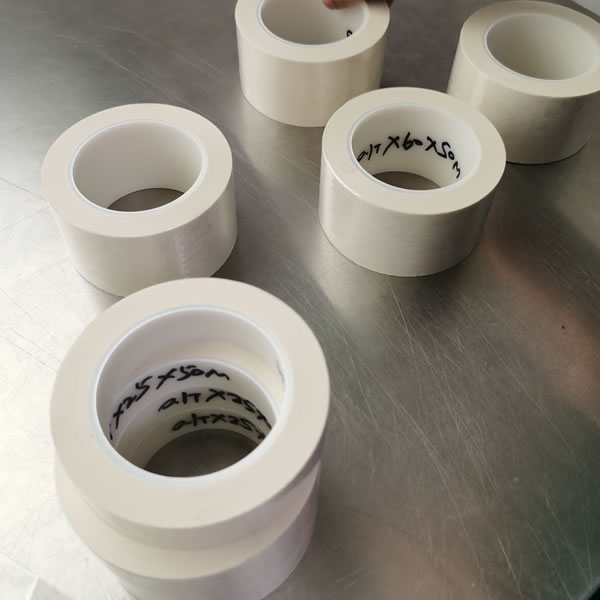

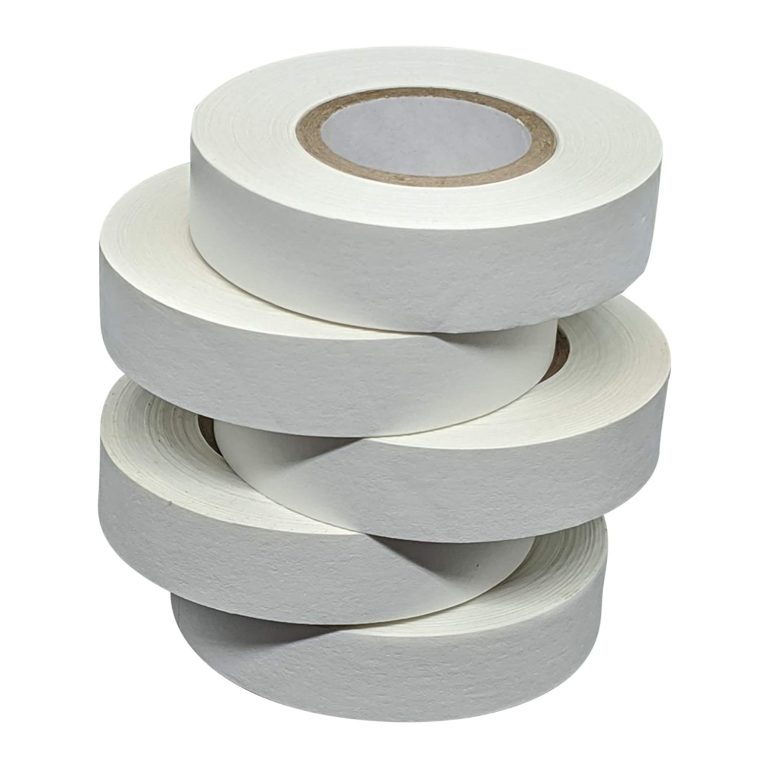

Nomex Tape

Product Description

Nomex Tape, also known as Aramid Paper Insulation Tape, is a high-performance electrical insulation material widely used in motors, transformers, batteries, and other high-temperature industrial applications. Manufactured from 100% aramid fiber (Nomex or equivalent), this tape offers excellent dielectric strength, thermal resistance up to 220C (Class H insulation), and outstanding mechanical durability.

It is available in different widths and thicknesses to suit various insulation needs.

Nomex Tape is non-adhesive by default, but can also be supplied with special heat-resistant coatings if required. Its unique properties make it a preferred choice in industries that demand flame resistance, dimensional stability, and long-lasting insulation performance.

Applications of Nomex Tape

• Electrical Insulation: Slot liner, phase insulation, and inter-turn insulation in motors, transformers, and generators

• Battery & EV Industry: Wrapping and thermal insulation in lithium-ion batteries and electric vehicles

• Aerospace & Automotive: High-temperature resistant insulation in wiring harnesses and components

• Industrial Equipment: Used in coils, capacitors, and high-voltage machinery

• Laminates & Composites: Reinforcement layer in epoxy, polyester, and phenolic resin-based laminates

Key Features of Nomex Tape

• Class H insulation (220C continuous operating temperature)

• High dielectric strength and electrical insulation properties

• Excellent mechanical strength and tear resistance

• Flame retardant and self-extinguishing

• Chemically resistant to oils, solvents, and most industrial fluids

• Lightweight, flexible, and eco-friendly

Frequently Asked Questions (FAQs)

Q1: Is Nomex Tape adhesive?
A: Standard Nomex Tape is non-adhesive, but adhesive-coated variants are available on request.

Q2: What is the maximum temperature Nomex Tape can withstand?
A: It is designed for continuous use up to 220C (Class H insulation).

Q3: In which industries is Nomex Tape commonly used?
A: Electrical, automotive, aerospace, EV battery manufacturing, and heavy industrial equipment.

Q4: Can Nomex Tape replace fiberglass or cotton tape?
A: Yes, especially in high-temperature and high-dielectric strength applications where fiberglass or cotton may fail.

Q5: What sizes are available?
A: Standard widths range from 10 mm to 100 mm, with thicknesses from 0.10 mm to 0.40 mm. Custom sizes are also available.

Customizable Thickness and Width Options

Nomex Tape is available in standard thicknesses of 0.08 mm to 0.18 mm, with customization possible for specific insulation needs. The tape comes in a standard width of 12.7 mm ( inch) and can be supplied in other sizes from 10 mm to 100 mm, ensuring a precise fit for varied electrical and mechanical applications.


Exceptional Electrical and Flame Retardant Properties

Engineered for high-voltage and thermal insulation, Nomex Tape offers flame retardancy, heat resistance, and strong adhesive bonding. Its aramid paper construction supports safe operation across industrial, automotive, and aerospace environments, making it suitable for demanding applications where both electrical safety and thermal stability are critical.


Multiple Industry Applications

This versatile tape is widely used for slot insulation and coil winding in motors and transformers, inter-layer battery insulation, protection of wiring harnesses in vehicles and aircraft, and general electrical and thermal insulation needs. Its eco-friendly nature adds value for users seeking sustainable solutions without compromising performance.
