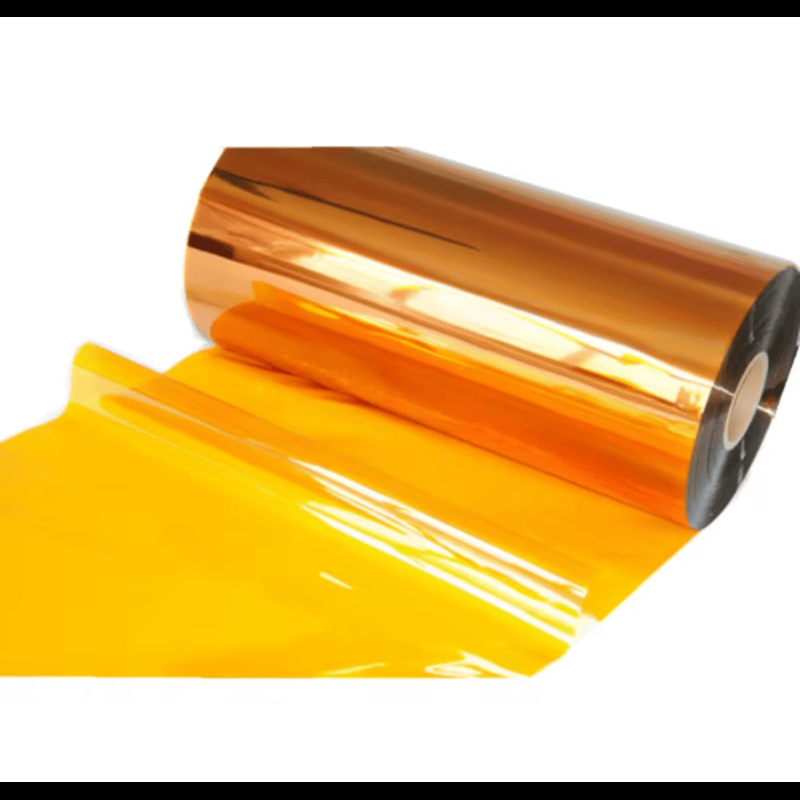

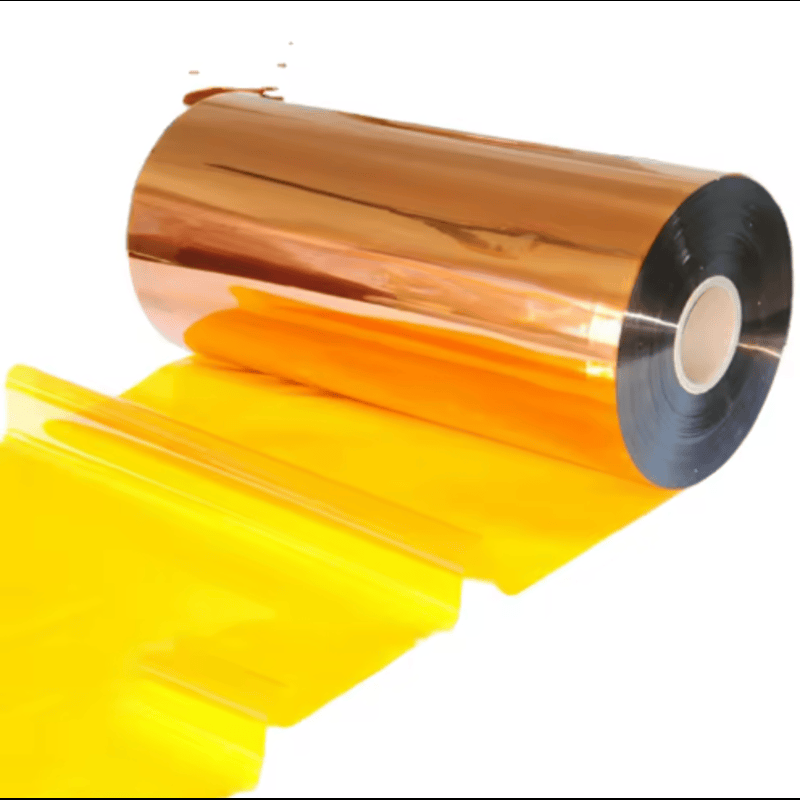

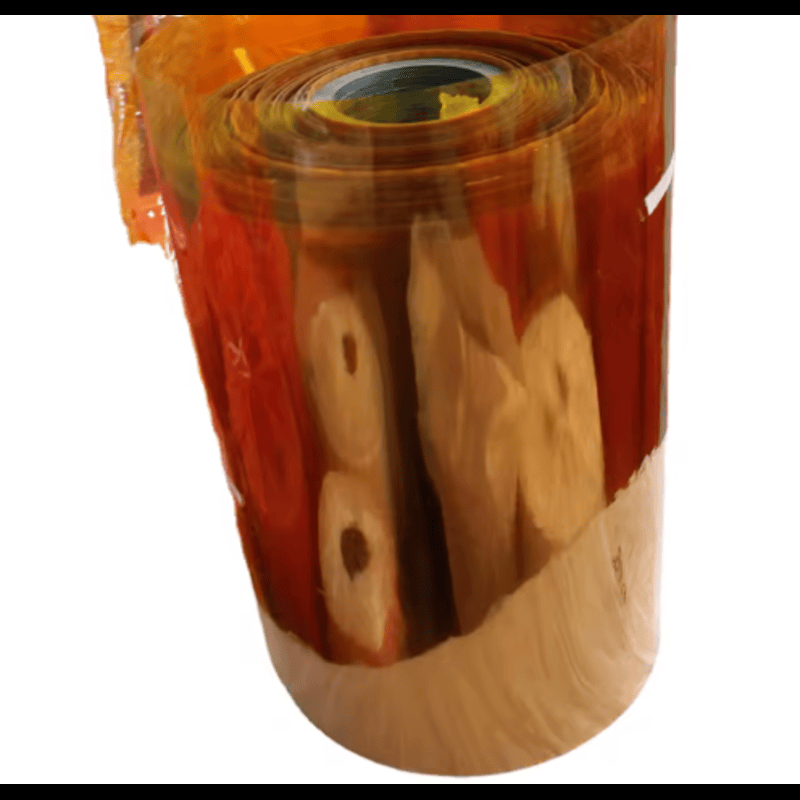

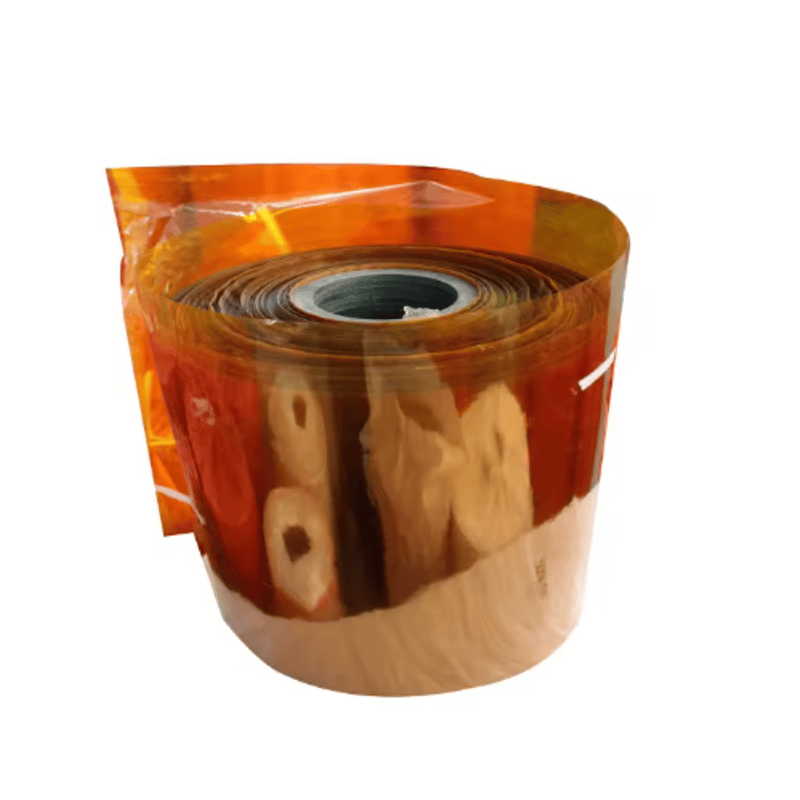

Insulation Film

• Application
• Wire & Cable Insulation, Transformers, Motors, Flexible Printed Circuits, Aerospace & Automotive Electronics

• Breakdown Voltage
• 5 12 kV (depending on thickness) Volt (V)

• Coating Type
• FEP coating on one or both sides (as required)

• Color
• Amber / Golden Transparent

• Density
• 1.42 g/cm (approx.) Gram per cubic centimeter(g/cm3)

• Feature
• Excellent dielectric and thermal insulation properties High heat resistance up to 200 C continuous use Chemical, moisture, and radiation resistant Non-stick surface due to FEP coating Superior flexibility and mechanical strength Suitable for heat-sealing and lamination

• Features
• Excellent dielectric and thermal insulation properties High heat resistance up to 200 C continuous use Chemical, moisture, and radiation resistant Non-stick surface due to FEP coating Superior flexibility and mechanical strength Suitable for heat-sealing and lamination

• Frequency
• Industrial insulation for 50/60 Hz and high-frequency applications Hertz (HZ)

• Heat Conductivity
• 0.12 0.15 W/mK Watt/Meter/K (w/(m.k)

• IP Rating
• IP20 (basic insulation protection)

• Installation Guideline
• Store in clean, dry conditions; process with controlled heat sealing if required

• Layer

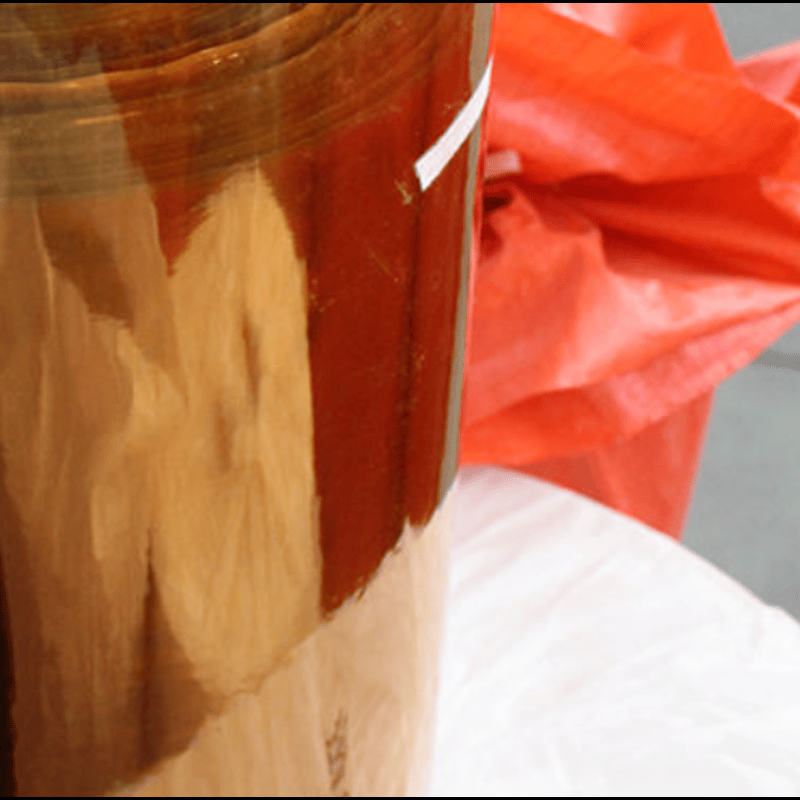

• Single layer polyimide with FEP coating

• Material
• Polyimide Film with FEP (Fluorinated Ethylene Propylene) Coating

• Max Withstanding Temperature
• 260 C (short-term use)

• Operating Temperature
• -200 C to +200 C continuous Celsius (oC)

• Phase
• Not applicable (insulation material)

• Power Rating
• Not applicable (insulation material)

• Product Type
• High-Temperature Electrical Insulation Film

• Rated Current
• Not applicable (insulation material) Volt (v)

• Rated Voltage
• Suitable for low to high-voltage insulation depending on thickness Volt (V)

• Surface Treatment
• Smooth, FEP-coated glossy surface

• Tensile Strength
• 150 220 MPa Megapascals (MPa )

• Thermal Conductivity
• 0.12 0.15 W/mK Watt/Meter/K (w/(m.k)

• Thickness
• 12 125 Microns (customizable) Micrometers (um)

• Usage & Applications
• Wire and cable insulation (aerospace, automotive, electronics) Flexible printed circuits (FPC) Transformer and motor insulation High-temperature adhesive tapes Coils, sensors, and heater insulation

• Warranty
• Standard

• Width
• Up to 1000 mm (slitting available) Millimeter (mm)

• Application
• Motors, Transformers, Cables, Packaging & Lamination

• Breakdown Voltage
• 6 10 kV (depending on thickness) Ampere (A)

• Coating Type
• Uncoated / Heat-sealable on request

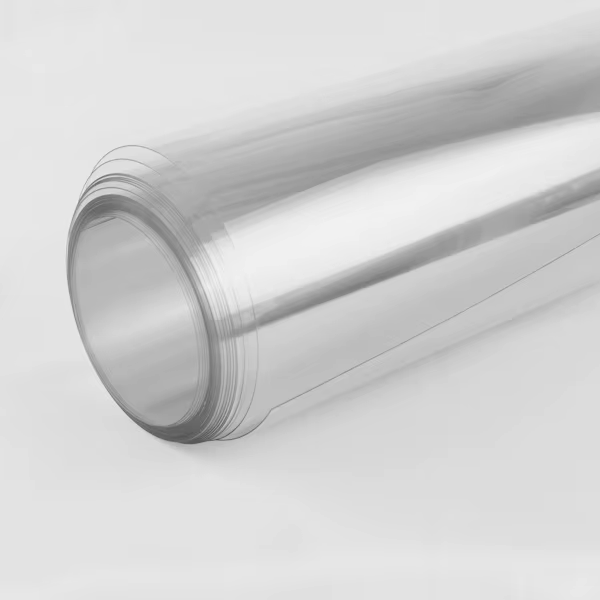

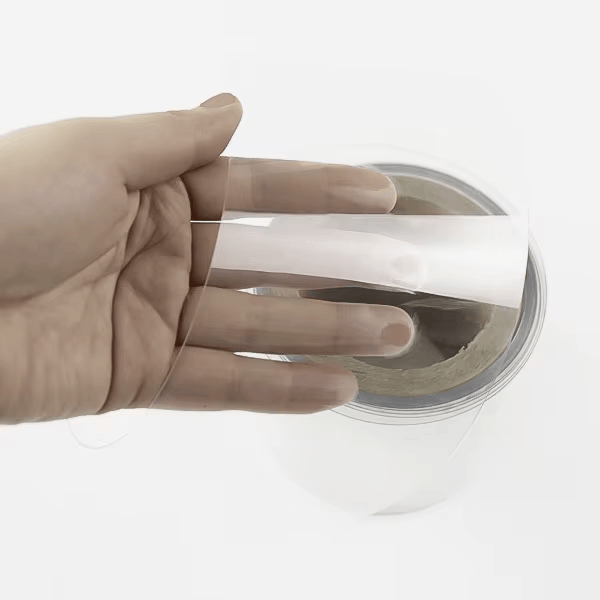

• Color
• Clear / Transparent

• Conductor
• 0.15 W/mK (approx.)

• Density
• 1.39 g/cm (approx.) Gram per cubic centimeter(g/cm3)

• Features
• High clarity and transparency Excellent dielectric properties Good resistance to heat, moisture, and chemicals High tensile and mechanical strength Easy to process, cut, and laminate

• Frequency
• Industrial grade, 50/60 Hz insulation applications Hertz (HZ)

• IP Rating
• IP20 (basic insulation protection)

• Installation Guideline
• Store in dry, clean environment; cut or slit before use

• Layer
• Single layer (lamination possible)

• Material
• Polyester (PET)

• Max Withstanding Temperature
• 180 C

• Operating Temperature
• -70 C to +150 C Celsius (oC)

• Phase
• Not applicable (insulation material)

• Power Rating
• Not applicable (insulation material)

• Product Type
• Electrical Insulation Film

• Rated Current
• Not applicable (insulation material) Ampere (amp)

• Rated Voltage
• Suitable for low to medium voltage insulation Ampere (A)

• Surface Treatment
• Smooth, Glossy Transparent finish

• Tensile Strength
• 150 220 MPa Megapascals (MPa )

• Thermal Conductivity
• 0.15 W/mK (approx.) Watt/Meter/K (w/(m.k)

• Thickness
• 12 350 Microns (customizable) Micrometers (um)

• Usage & Applications
• Electrical insulation in motors, transformers, and generators Flexible laminates for insulation Cable wrapping and protective covering Packaging, printing, and industrial lamination

• Warranty
• Standard manufacturer warranty against defects in material & workmanship

• Width
• Up to 1000 mm (slitting available) Millimeter (mm)

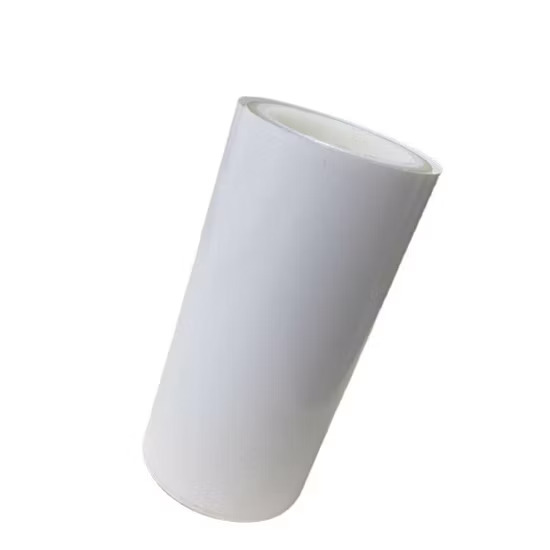

• Application
• Electrical insulation for motors, transformers, and cables Slot liners and phase separators in electric machines Flexible laminates with other insulation substrates Packaging and protective covering in electrical industry

• Breakdown Voltage
• 6 10 kV (depending on thickness) Volt (V)

• Coating Type
• Uncoated / Heat-sealable (available on request)

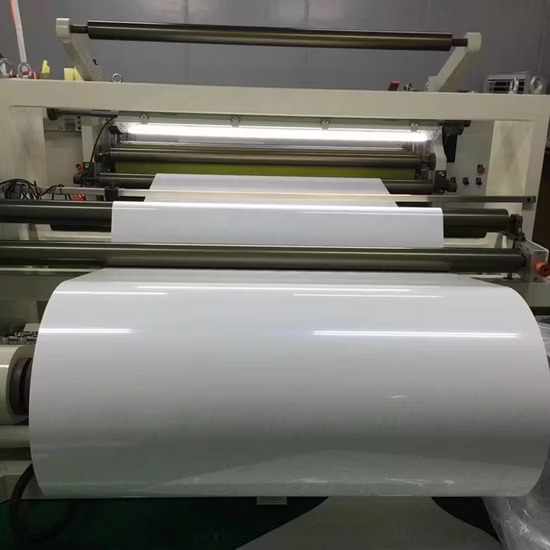

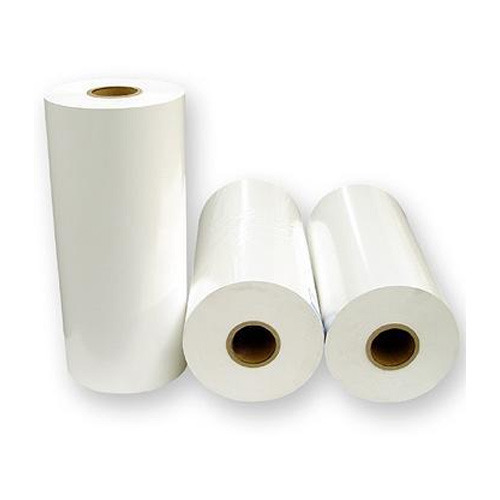

• Color
• White / Milky White

• Density
• 1.39 g/cm (approx.) Gram per cubic centimeter(g/cm3)

• Feature
• Excellent electrical insulation properties Good thermal stability High mechanical strength Resistant to moisture and chemicals Uniform milky white appearance for easy identification Flexible and easy to process (slitting, cutting, wrapping)

• Features
• Excellent electrical insulation properties Good thermal stability High mechanical strength Resistant to moisture and chemicals Uniform milky white appearance for easy identification Flexible and easy to process (slitting, cutting, wrapping)

• IP Rating
• IP20 (basic insulation protection)

• Layer
• Single-layer film, can be laminated

• Material
• Polyester Film

• Max Withstanding Temperature
• 180 C

• Operating Temperature
• -70 C to +150 C Celsius (oC)

• Power Rating
• Not applicable (insulation material)

• Product Type
• Electrical Insulation Film

• Rated Current
• Not applicable (insulation material) Volt (v)

• Rated Voltage
• Suitable for low to medium voltage insulation applications Volt (V)

• Surface Treatment
• Smooth, Milky White finish

• Tensile Strength
• 150 220 MPa Megapascals (MPa )

• Thermal Conductivity
• 0.15 W/mK (approx.) Watt/Meter/K (w/(m.k)

• Thickness
• 50 350 Microns (customizable as per requirement) Micrometers (um)

• Usage & Applications
• Electrical insulation for motors, transformers, and cables Slot liners and phase separators in electric machines Flexible laminates with other insulation substrates Packaging and protective covering in electrical industry

• Warranty
• Standard manufacturer warranty against defects in material & workmanship

• Width
• Up to 1000 mm (standard rolls, slitting available) Millimeter (mm)

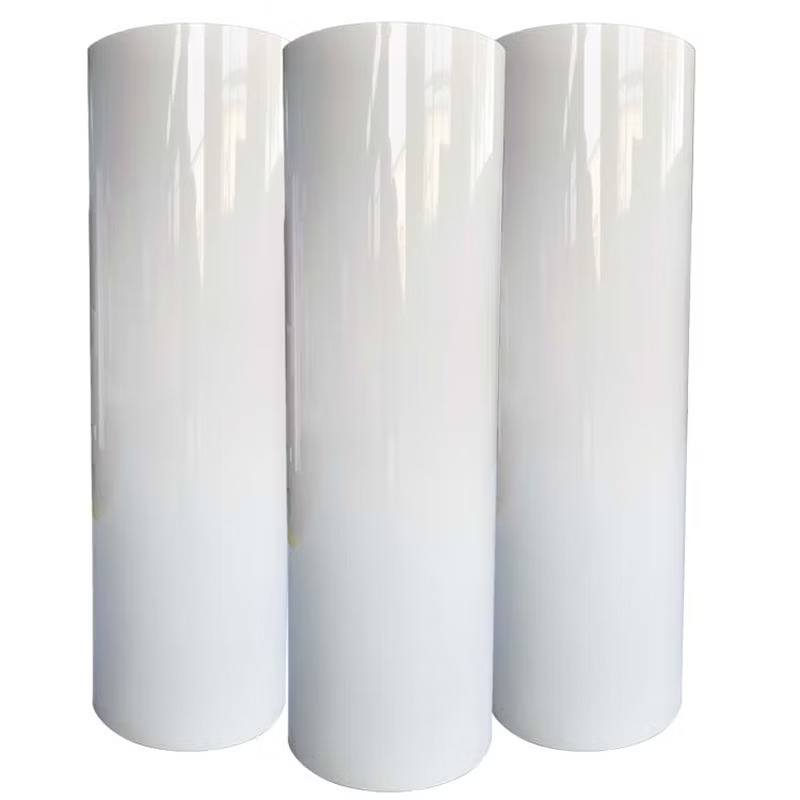

• Breakdown Voltage
• 6 10 kV (depending on thickness) Ampere (A)

• Cable Type
• Standard (slitting available )

• Coating Type
• Uncoated / Heat-sealable (custom options available)

• Color
• White / Milky White

• Density
• 1.39 g/cm (approx.) Gram per cubic centimeter(g/cm3)

• Feature
• Superior electrical insulation performance Excellent thermal stability for high-temperature applications High tensile and mechanical strength Resistant to moisture, aging, and chemicals Uniform milky white appearance for easy identification Flexible, easy to cut, slit, and process

• Features
• Superior electrical insulation performance Excellent thermal stability for high-temperature applications High tensile and mechanical strength Resistant to moisture, aging, and chemicals Uniform milky white appearance for easy identification Flexible, easy to cut, slit, and process

• IP Rating
• IP20 (basic insulation protection)

• Layer
• Single-layer film, laminable on request

• Material
• Polyester Film

• Max Withstanding Temperature
• 180 C

• Operating Temperature
• -70 C to +150 C Celsius (oC)

• Power Rating
• Not applicable (insulation material)

• Product Type
• Electrical Insulation Film

• Rated Current
• Not applicable (insulation material) Volt (v)

• Rated Voltage
• Suitable for low to medium voltage insulation applications Volt (V)

• Surface Treatment
• Smooth, Milky White finish

• Tensile Strength
• 150 220 MPa Megapascals (MPa )

• Thermal Conductivity
• 0.15 W/mK (approx.) Watt/Meter/K (w/(m.k)

• Thickness
• 50 350 Microns (customizable) Micrometers (um)

• Usage & Applications
• Slot liners, phase separators, and insulation in electric motors Transformer insulation and layer insulation for coils Flexible laminates with other substrates for enhanced protection Insulation for wires, cables, and electronic devices Protective covering and industrial packaging

• Warranty
• Standard manufacturer warranty against defects in material & workmanship

• Width
• Up to 1000 mm (standard & slit rolls available) Millimeter (mm)

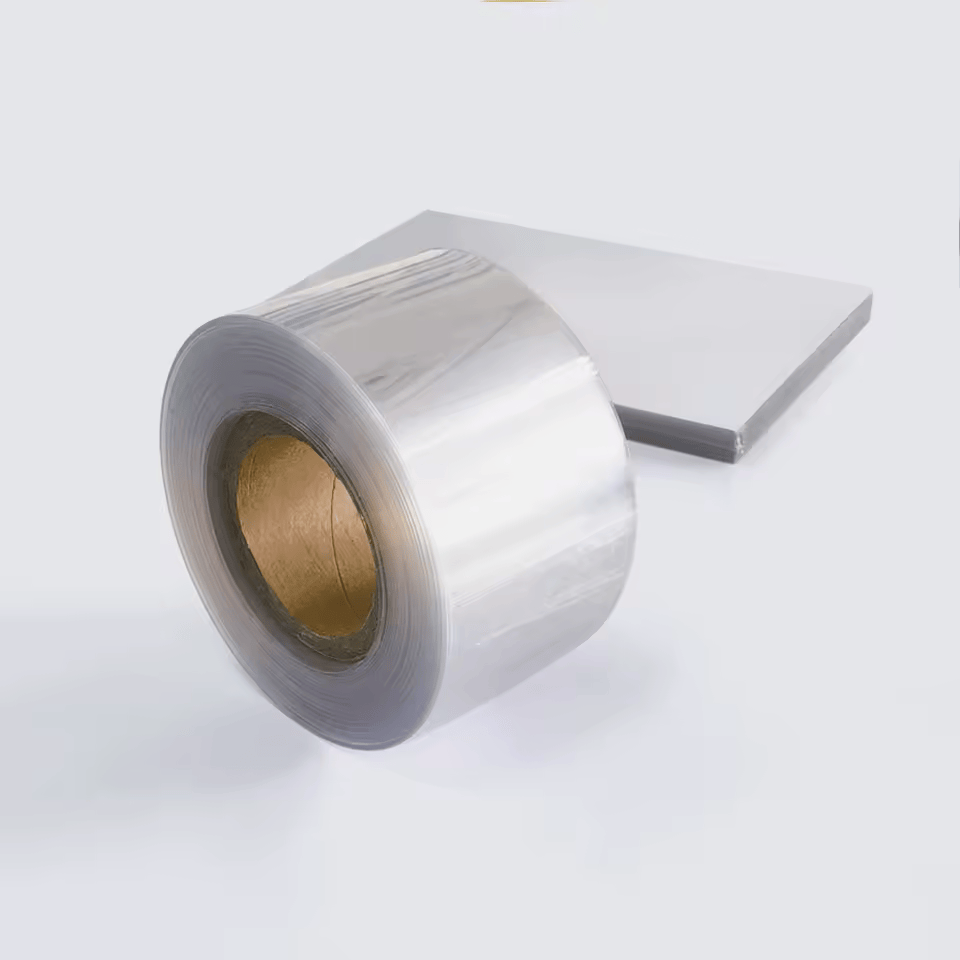

• Coating
• Coated

• Color
• White

• Display Type
• Nil

• Features
• Good Quality

• Material
• Polyester

• Paper Type
• Craft Paper

• Product Type
• Polyester Film

• Size
• Standard

• Thickness
• 8 to 50 Millimeter (mm)

• Warranty
• Yes

• Breakdown Voltage
• 6 10 kV (depending on thickness) Ampere (A)

• Coating Type
• Uncoated / Heat-sealable (custom options available)

• Color
• White / Milky White

• Density
• 1.39 g/cm (approx.) Gram per cubic centimeter(g/cm3)

• Heat Conductivity
• 0.15 W/mK (approx.) Watt/Meter/K (w/(m.k)

• IP Rating
• IP20 (basic insulation protection)

• Layer
• Single-layer film, laminable on request

• Material
• Polyester Film

• Max Withstanding Temperature
• 180 C

• Operating Temperature
• -70 C to +150 C Celsius (oC)

• Power Rating
• Not applicable (insulation material)

• Product Type
• Electrical Insulation Film

• Rated Current
• Not applicable (insulation material) Ampere (amp)

• Rated Voltage
• Suitable for low to medium voltage insulation applications Ampere (A)

• Surface Treatment
• Smooth, Milky White finish

• Tensile Strength
• 150 220 MPa Megapascals (MPa )

• Thickness
• 50 350 Microns (customizable) Micrometers (um)

• Width
• Up to 1000 mm (standard & slit rolls available) Millimeter (mm)

• Color
• White

• Feature
• Good Quality

• Features
• Good Quality

• Material
• Polyester

• Product Type
• Film

• Size
• Standard

• Surface Treatment
• Smooth

• Thickness
• 5 Millimeter (mm)

• Warranty
• Yes

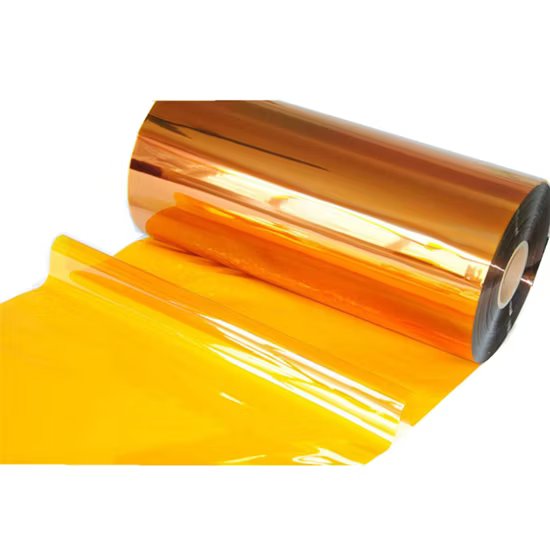

• Application
• Electrical insulation in motors, transformers, cables; packaging industry; laminates for insulation papers; automotive and aerospace thermal protection.

• Color
• Natural, Transparent, or Milky White

• Feature
• High tensile strength, abrasion resistance, good electrical insulation, excellent barrier to gas & oil, flexible at low temperatures.

• Features
• High tensile strength, abrasion resistance, good electrical insulation, excellent barrier to gas & oil, flexible at low temperatures.

• Material

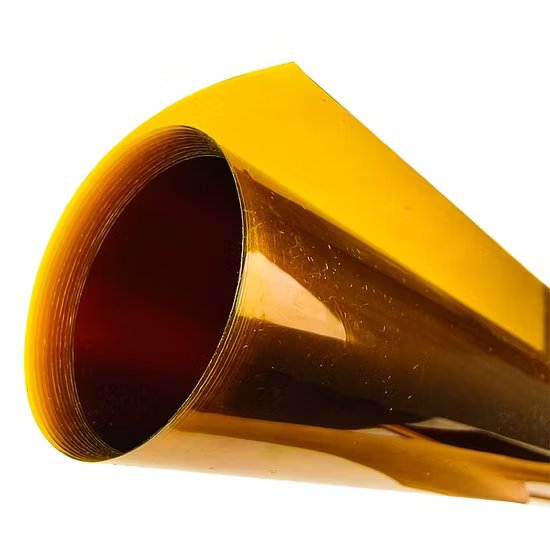

• Polyamide (Nylon-based thermoplastic film)

• Operating Temperature
• -60 C to +150 C (continuous use) Celsius (oC)

• Product Type
• Electrical & Industrial Insulation Film

• Rated Voltage
• 120 180 kV/mm Volt (V)

• Thickness
• 12 m 125 m (standard range) Micrometers (um)

• Usage & Applications
• Motor & transformer insulation, flexible laminates, cable wraps, electrical & electronic insulation, barrier films for industrial packaging.

• Width
• Customizable (typically 250 mm 1500 mm) Millimeter (mm)

• Color
• Transparent

• Features
• Good Quality

• Material
• Polyester

• Usage & Applications
• Industrial

• Warranty
• Yes
