Product Description

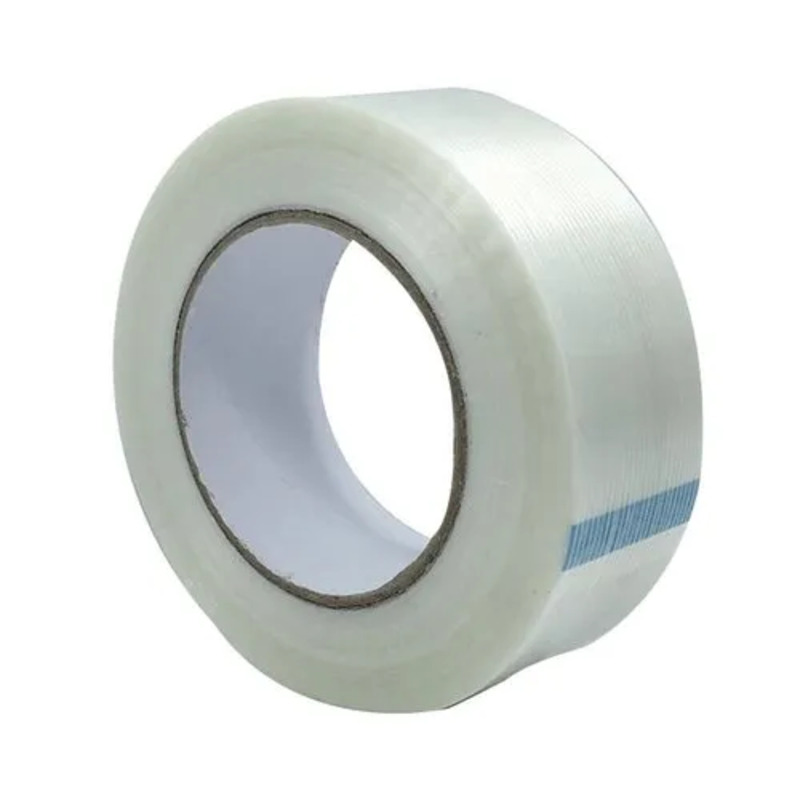

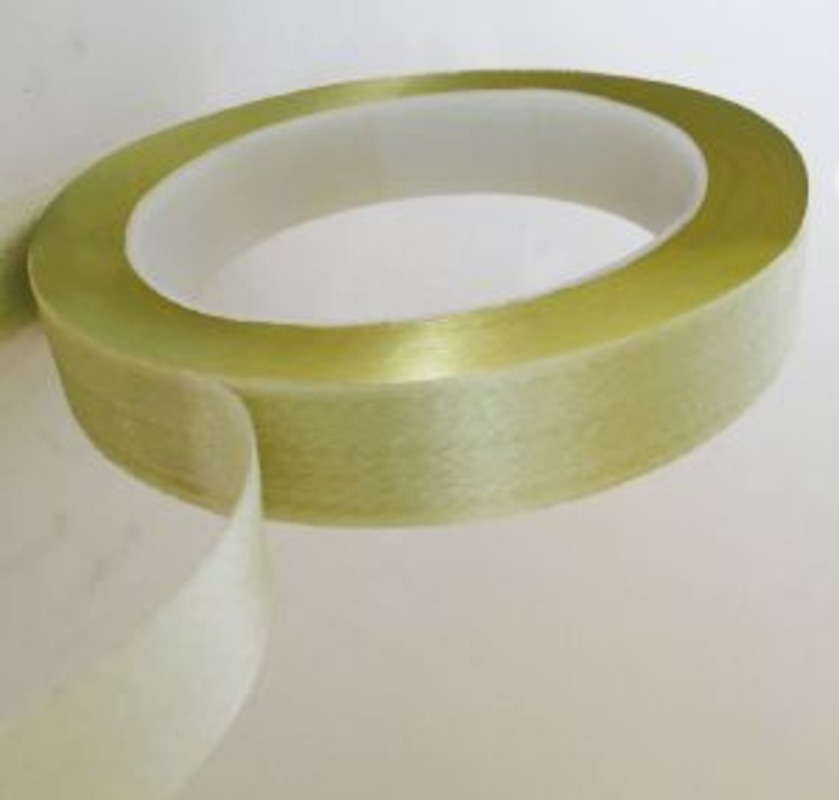

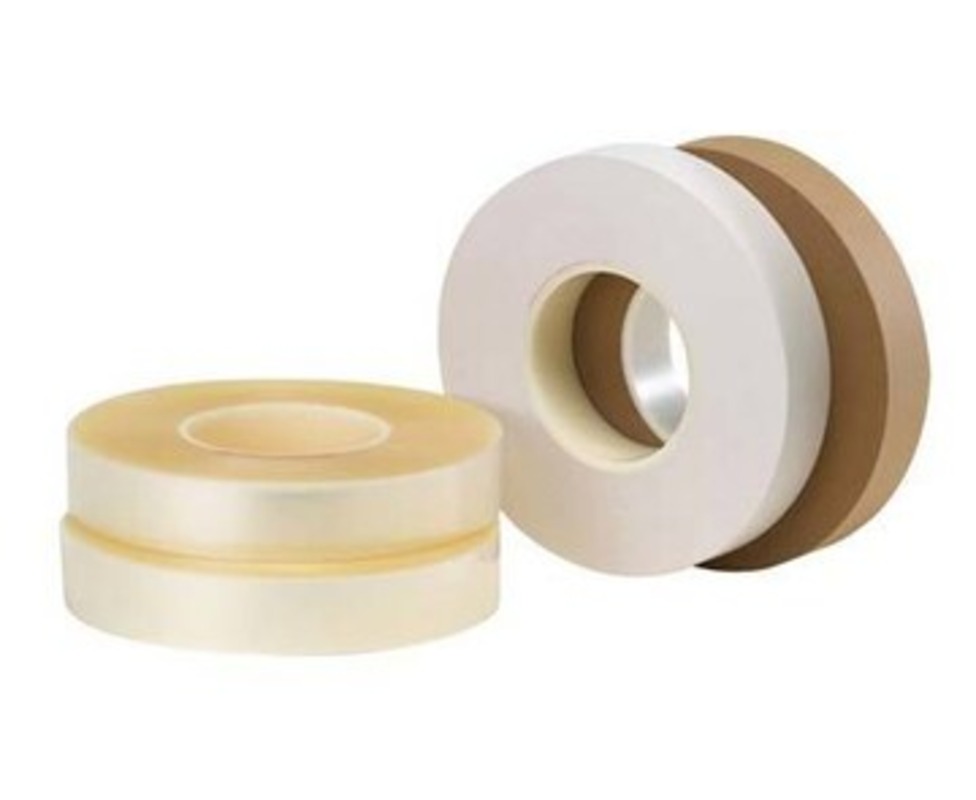

Resiglas Tape
Resiglas Tape is a premium electrical insulation tape manufactured from high-quality fiberglass yarn impregnated with special resins. Known for its excellent dielectric strength, mechanical durability, and heat resistance, it is widely used in high-voltage and high-temperature applications. The resin bonding provides strong adhesion, dimensional stability, and resistance to moisture, ensuring long-lasting performance in demanding industrial environments.
Key Features:
-
Superior electrical insulation and dielectric properties
-
High mechanical strength with resistance to abrasion
-
Withstands continuous operating temperatures up to 155C 180C (depending on grade)
-
Moisture, chemical, and oil resistant
-
Provides dimensional stability even under mechanical stress
-
Suitable for banding, wrapping, and coil insulation in electrical equipment
Applications:
-
Used in transformers, motors, and generators for coil banding and insulation
-
Reinforcement for cables, wires, and conductors
-
Ideal for high-voltage insulation in heavy electrical machinery
-
Widely applied in power, automotive, and aerospace industries
Available Forms:
-
Rolls in standard & customized widths
-
Varnish or resin impregnated grades
-
Heat-treated and untreated options
Resiglas Tape is the trusted choice for industries requiring reliable insulation, thermal stability, and mechanical strength, ensuring safe and efficient performance of electrical systems.
Basic Info.
Maximum Voltage
20KV100KV
Usage
Power Transformer Winding
Key Words
Polyglass Banding Tape
Product Name
Banding Tape
Chemistry
Organic Insulation
Classification
Hybrid Insulation Materials
Transport Package
Pallets
Specification
according to customer requirments
Production Capacity
100000roller /Year
Product Description

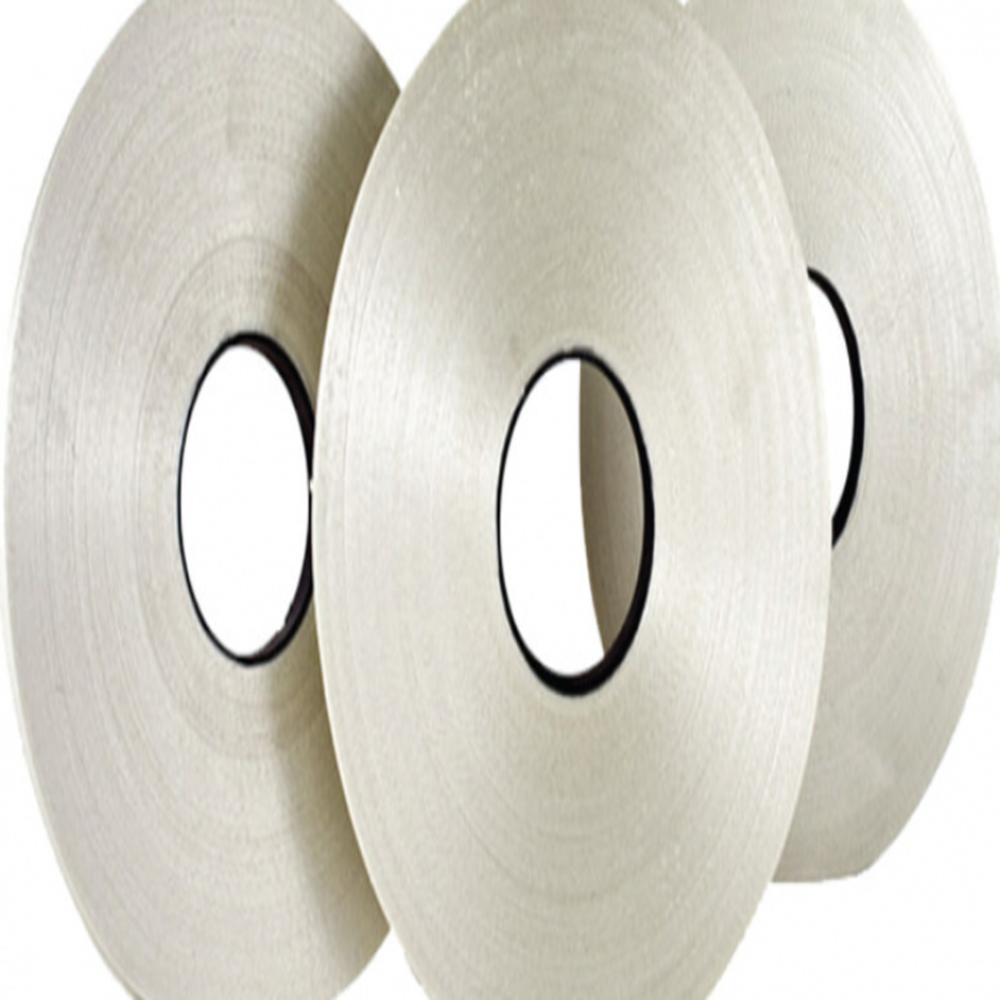

Polyglass banding tape
| Specification: |
|
| No. |
Item |
Standard |
Tolerence |
|
| 1 |
Thickness mm |
0.17,0.20,0.25, 0.30, |
0.03 |
|
|
|
| 2 |
Width mm |
10 |
1 |
|
| 15 |
1.5 |
|
| 20,25 |
2 |
|
| 30,40,50 |
|
| 3 |
Length mm |
Coil |
125 |
1 0 |
|
|
|
| 200,250,300 |
2 0 |
|
|
|
| Roll |
500 |
3 0 |
|
|
|
| 1000,1500 |
5 0 |
|
|
|
| Performance:(JB/T6236.3-92) |
| No. |
Index |
Unit |
Standard Value |
| 2830 |
2831 |
2840 |
2841-W |
2842-W |
2843-W |
| 1 |
Volatile |
% |
5.0 |
| 2 |
Resin content |
% |
272 |
| 3 |
Soluble resin content |
% |
90 |
| 4 |
Curing property |
|
Easy to be peeled off ,not adhesion |
| 5 |
Tensile strength before curing |
N/10mm width |
- |
5.00102(0.17mm thickness) |
| 1.00103(0.30mm thickness) |
| 6 |
Tensile strength of annular sample(room temp. |
MPa |
8.00 |
9.00 |
8.00 |
9.00 |
1.15 |
9.00 |
| 102 |
102 |
102 |
102 |
103 |
102 |
|
|
|
|
|
|
|
| 7 |
Tensile strength of annular sample(Termal state) |
MPa |
5.00102 |
5.60 |
9.00 |
5.60 |
| 102 |
102 |
102 |
| 8 |
Elongation at break of annular sample |
% |
4.0 |
| 9 |
Tensile elastic modulus for annular sample |
MPa |
4.50104 |
| 10 |
Temperature index for long-term heat resistance |
C |
130 |
155 |
| Curing condition :(not including the heating time of itself) |
|
| 28302831 |
2840 |
2841-W 2842-W |
2850 |
2851 |
| 2843-W 2844-W |
| Temp. |
Time |
Temp. |
Time |
Temp. |
Time |
Temp. |
Time |
Temp. |
Time |
| C |
h |
C |
h |
C |
h |
C |
h |
C |
h |
| 80 |
2 |
80 |
2 |
80 |
2 |
120 |
2 |
80 |
2 |
| 105 |
2 |
100 |
2 |
120 |
2 |
140 |
2 |
130 |
2 |
| 120 |
2 |
130 |
2 |
155 |
15 |
160 |
2 |
155 |
2 |
| 130 |
15 |
155 |
8 |
|
|
180 |
4 |
180 |
3 |
|
|
|
|
|
|
|
200 |
4 |
|
|
Reliable Electrical InsulationEngineered for electrical insulation needs, Resiglass Tape ensures secure banding for motor windings and transformer coils. Its resin-impregnated and heat-resistant properties provide enhanced protection and operational reliability in challenging environments, making it a trusted choice for industry professionals needing robust insulation.
Customizable and Versatile ApplicationsWith customizable widths between 10 mm and 50 mm and available thicknesses, this tape adapts seamlessly to various requirements, whether for coil winding, cable reinforcement, or high-temperature insulation. Its strong adhesion and water-resistant characteristics further extend its versatility across a range of industrial sectors.
FAQs of Resiglass Tape:
Q: How should Resiglass Tape with Adhesive Side be applied in motor winding or transformer coil banding processes?
A: To achieve optimum results, ensure the target surface is clean and dry. Carefully align the single-sided tape along the winding or coil, pressing gently for secure adhesion. Its smooth, heat-resistant finish allows the tape to conform tightly without wrinkling, providing consistent insulation in high-temperature environments.
Q: What advantages does the resin-impregnated coating offer for electrical applications?
A: The resin-impregnated coating significantly boosts the tapes overall dielectric strength and thermal stability. This means greater resistance to electrical stress and extended performance under high heat, which is especially crucial for motor windings, transformers, and other high-temperature insulation requirements.
Q: When is the best time to use Resiglass Tape during assembly or repair?
A: Ideally, Resiglass Tape should be used during the winding or assembly phase to ensure all components are securely insulated before operation. For repair work, its best applied when equipment is fully powered down and maintenance teams can access the target area safely and cleanly.
Q: Where can Resiglass Tape be utilized aside from traditional electrical insulation uses?
A: Beyond typical applications like motor and transformer winding, this tape is also effective for cable reinforcement, high-temperature banding in industrial systems, and anywhere resilient electrical insulation is requiredparticularly in environments needing water resistance and robust heat tolerance.
Q: What process ensures maximum shelf life for the tape?
A: For optimal longevity, store the tape in a cool, dry environment away from direct sunlight and moisture. Following recommended storage conditions allows the tape to retain its adhesive and functional properties for up to 24 months.
Q: What are the primary benefits of using this eco-friendly electrical insulation tape in industrial settings?
A: The tapes eco-friendly build contributes to sustainable practices while providing superior heat resistance, water repellency, and physical durability, ensuring long-term, reliable insulation for critical electrical components.
